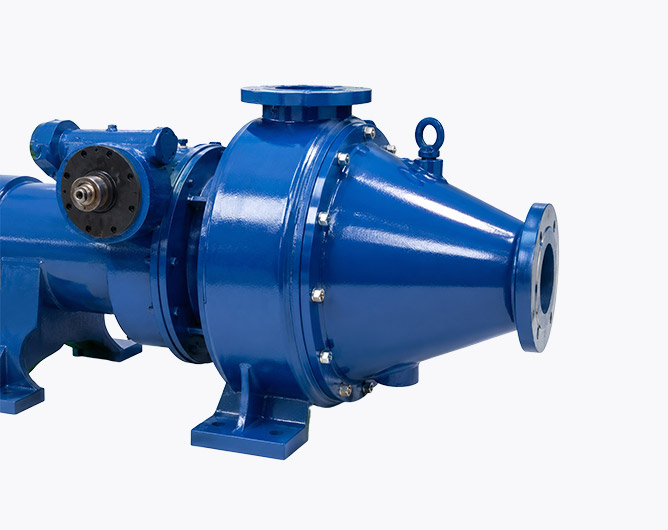

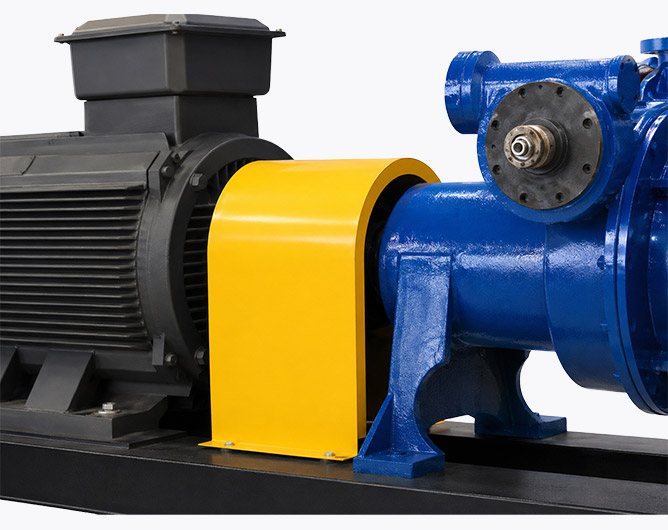

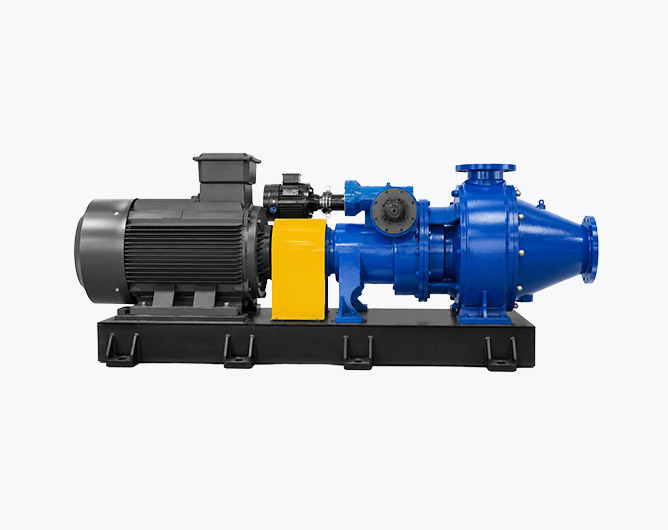

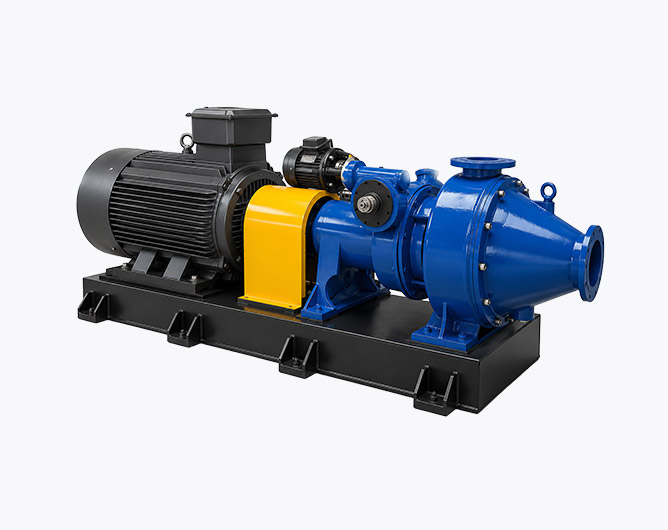

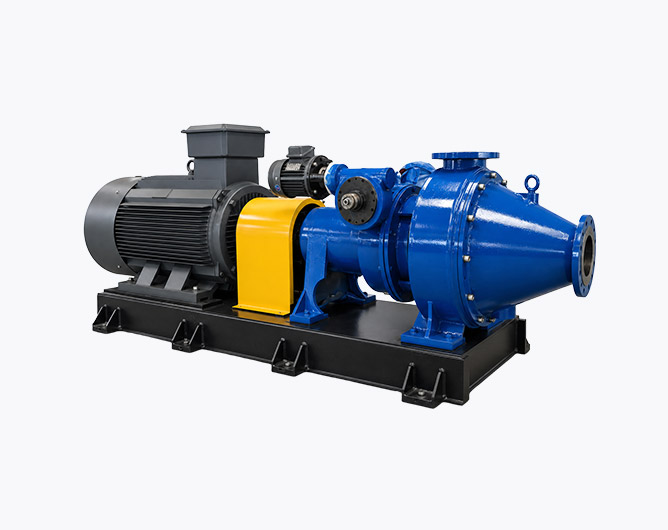

Conical Fiber Refiner for Recycled Leather Production Line

Conical Fiber Refiner for Recycled Leather Production Line

The Conical Fiber Refiner is specially designed for the recycled leather production line. It is mainly used for refining, grinding and homogenizing recycled leather fiber slurry before the forming process. Through the conical refining structure, the machine provides continuous mechanical grinding and shearing, helping improve fiber dispersion, slurry uniformity and material stability.

Tel: +86 18739193337

Whatsapp: +86 18739193337

Send Email Inquiry Now

Product Description

According to different production capacity requirements, Huaixin Machinery can provide different conical refiner models, such as HX-ZDJ-350 and HX-ZDJ-450. The model number is designed based on the refiner series and rotor diameter, making it easier for customers to select the suitable machine for their production line.

Selling Points

Conical Refining Structure

The conical refining structure provides stable grinding and shearing performance, helping improve fiber dispersion and slurry uniformity.

Suitable for Recycled Leather Production

The machine is designed for slurry preparation before recycled leather forming and can be integrated into the complete production line.

Customized According to Capacity

Motor power, processing capacity, inlet and outlet size, and installation layout can be customized according to customer requirements.

Product Advantages

The HX-ZDJ Series Conical Fiber Refiner is used in the recycled leather production line for refining recycled leather fiber slurry before forming. Available models include HX-ZDJ-350 and HX-ZDJ-450, with rotor diameters of 350mm and 450mm. The machine helps improve fiber dispersion, slurry uniformity and material stability, making the slurry more suitable for the following forming process.

The HX-ZDJ series is designed for recycled leather fiber slurry refining, with different rotor diameters available for different production capacities.

Technical Parameters

Item	HX-ZDJ-350	HX-ZDJ-450
Product Name	Conical Fiber Refiner	Conical Fiber Refiner
Machine Type	Conical Refiner	Conical Refiner
Rotor Diameter	350 mm	450 mm
Production Capacity	10–30 T/D	20–60 T/D
Motor Power	75–90 kW	110–132 kW
Inlet Pulp Consistency	3–5%	3–5%
Applicable Material	Recycled leather fiber slurry	Recycled leather fiber slurry
Main Function	Refining, grinding, dispersing, homogenizing	Refining, grinding, dispersing, homogenizing
Application	Slurry refining before recycled leather forming	Slurry refining before recycled leather forming
Installation Type	Integrated into recycled leather production line	Integrated into recycled leather production line
Customization	Capacity, motor power, inlet/outlet size and layout can be customized	Capacity, motor power, inlet/outlet size and layout can be customized

Leave Message

Please provide us with information about your raw materials, production capacity, and factory conditions, and we will design a suitable recycled leather machinery solution for you.
